**1- Introduction to the Finite Element Analysis**

The finite element analysis is a numerical technique that is used to solve complex engineering problems. It is based on the discretization of the problem domain into small elements, which are then solved using the laws of physics. The finite element analysis using ABAQUS software is a powerful tool that can be used to solve a wide variety of engineering problems. In this blog, we will introduce the basics of the finite element analysis and show how it can be used to solve a simple engineering problem. We will start by discretizing the problem domain into small elements. We will then formulate the equations that govern the behavior of these elements. Finally, we will use ABAQUS to solve the equations and obtain the results.

Lets take look at a Problem;

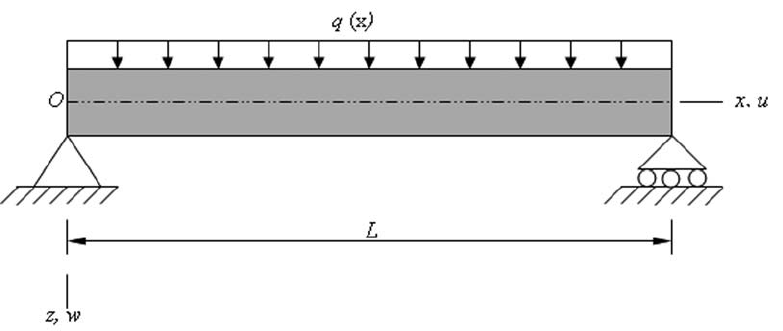

Consider a beam that is supported at two points and subjected to a uniform load. The objective is to determine the deflection at the midpoint of the beam.

The first step is to discretize the problem domain into small elements. We will use two elements in this example. Each element will be represented by a node, which will be located at the endpoints of the element. The next step is to formulate the equations that govern the behavior of the elements. In this case, we will use the equations of equilibrium and the laws of mechanics.

The equations of equilibrium state that the sum of all forces must be equal to zero. The laws of mechanics state that the sum of all moments must also be equal to zero. Using these two equations, we can write down the equations for each element:

F1 – F2 = 0 (1)

M1 + M2 = 0 (2)

where F1 and F2 are the forces acting on the first and second nodes, respectively, and M1 and M2 are the moments acting on the first and second nodes, respectively.

**2-The Basic Principles of FEA**

The finite element analysis (FEA) is a numerical technique used to solve problems in engineering. The basic idea behind FEA is to divide a complex problem into smaller, simpler pieces that can be solved more easily. One of the most popular software programs for FEA is ABAQUS. ABAQUS provides a comprehensive set of tools for performing all types of FEA, from simple linear analyses to complex nonlinear analyses. If you’re new to FEA, or are simply looking for a refresher on the basics, this article will introduce you to the basic principles of FEA using ABAQUS. We’ll cover topics such as meshing, boundary conditions, and loading, and show you how to set up and run a simple linear analysis.

In order to perform an FEA analysis, the first step is to discretize the problem domain into a mesh, or collection of small elements. The mesh is used to approximate the true shape of the domain, and the size and location of the elements must be carefully chosen to ensure accuracy of the solution. There are many different types of elements that can be used in an FEA mesh, but the most common are four-noded quadrilateral elements. These elements have four nodes, or corners, and each node has three degrees of freedom: two translational degrees of freedom (DOFs) in the x- and y-directions, and one rotational degree of freedom about the z-axis.

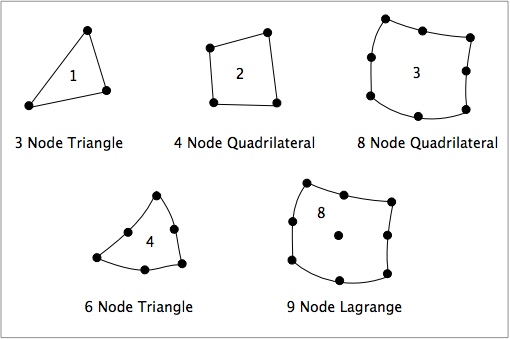

The figure below shows a 3/4/8/6/9 node element with its nodes.

**3- Advantages and Disadvantages of FEA**

The Finite Element Analysis (FEA) is a numerical method for solving problems of engineering and mathematical physics. Problems are discretized by subdividing them into simpler, smaller pieces called “elements.” FEA then uses variationally methods from the calculus of variations to approximate a solution by minimizing an associated error function.

There are many advantages to using FEA. The method is very versatile and can be used to solve a wide variety of problems. Additionally, FEA can be used to obtain very accurate results, even for complex problems. Finally, FEA can be automated, which means that once a problem is set up, it can be solved without any further input from the user. However, there are also some disadvantages to using FEA. First, the method can be computationally expensive, especially for large or complex problems. Second, the results of FEA are only as good as the assumptions that are made in setting up the problem; if these assumptions are not valid, then the results of the analysis will not be accurate.

Once the problem domain has been discretized into a mesh, the next step is to specify the boundary conditions. Boundary conditions are necessary to define what kind of motion is allowed at the edges of the domain. For example, if we wanted to model a cantilever beam, we would need to specify that there can be no displacement in the some point and direction. The finite element analysis (FEA) is a numerical method for solving problems in engineering. The basic principle of FEA is to divide a complex problem into small, manageable parts that can be solved using mathematical methods.

One of the advantages of FEA is that it can be used to solve problems that are too difficult or impossible to solve using traditional methods. For example, FEA can be used to study the stress distribution in a complex object such as an aircraft wing.

Another advantage of FEA is that it can be used to study the behavior of structures and materials under extreme conditions, such as those found in space or during an earthquake. FEA is a powerful tool that can be used to solve a wide variety of engineering problems. If you are working on a problem that you think might benefit from FEA, talk to your supervisor or a qualified engineer to see if FEA is right for you. The finite element analysis (FEA) is a numerical technique used to solve problems in engineering. The basic idea behind FEA is to divide a complex object into small, manageable pieces (elements) and then to analyze how those pieces react to external forces.

One of the main advantages of FEA is that it can be used to study objects that are too big or too small to be physically tested. For example, FEA can be used to study the effects of an earthquake on a building or the stress on a tiny component in an electronic device.

FEA can also be used to study objects that are too difficult or expensive to create in the real world. For example, FEA can be used to design a new car suspension system or to test the strength of a new aircraft wing design.

**4- How to use the software for FEA?**

The first step is to create a model of the object you want to analyze. This can be done in a CAD program, or by hand. Once the model is created, it must be exported to a format that ABAQUS can understand. The second step is to create a mesh for the model. This will divide the model into small elements that can be analyzed individually. ABAQUS has a number of built-in meshing algorithms, or you can use a third-party mesher.

Once the mesh is created, you need to define the material properties for each element. This includes the Young’s modulus and Poisson’s ratio. ABAQUS also allows you to specify other material properties, such as density and heat capacity. The next step is to define the loads and boundary conditions for the analysis. This includes things like applied forces and displacement constraints. Once all of this is defined, you can run the analysis.

ABAQUS will output a variety of results, including stress, strain, and displacement vectors. You can also generate visualizations of the deformed mesh, or create animations to show how the object responds to the applied loads.

**5- What is Abaqus?**

Abaqus is a software suite for finite element analysis and computer-aided engineering. It is widely used in a variety of industries, from aerospace to automotive. Abaqus is known for its ease of use and robustness. Abaqus consists of three main components:

The Abaqus/Standard platform, which is the core finite element analysis solver.

The Abaqus/Explicit platform, which is geared towards simulations that involve dynamic loading.

The Abaqus/CAE platform, which is a graphical user interface (GUI) that can be used to create and edit models, run analyses, and post-process results. We have also provided you with articles on **Abaqus learning methods** and its **conceptual learning**. Keep in mind that to increase your modeling knowledge in Abaqus software, the best reference is the software help, along with the tutorials on our website.

**6- Conclusion**

Finite element analysis is a powerful tool that can be used to simulate and analyze the behavior of structures under various loads. In this article, we have discussed how ABAQUS can be used to perform finite element analysis. We have also looked at some of the benefits of using ABAQUS for finite element analysis. If you are looking for a software package to perform finite element analysis, then ABAQUS should definitely be on your list of options.

**Structural Numerical Research Center** has more than 13 years of continuous and dynamic activity in the field of engineering. Many engineering problems have been solved by our researchers, and their training videos are available in the link.
