Geotechnical engineering is a branch of civil engineering that deals with the behavior of soil and rock in relation to structures and construction projects. Geotechnical engineers use a variety of tools and techniques to understand the properties of soil and rock, and to design structures that are safe and reliable. One of the most powerful tools available to geotechnical engineers is finite element analysis (FEA), which allows them to simulate the behavior of soil and rock under various conditions. In this article, we’ll explore some of the key applications of FEA in geotechnical engineering, and examine how it is being used to design safer, more efficient structures.
Overview of Finite Element Analysis
Before we dive into the specific applications of FEA in geotechnical engineering, let’s take a brief look at how the technique works. FEA is a computational method that divides a complex system into smaller, simpler elements, and then solves for the behavior of each element using numerical methods. The solutions for each element are then combined to create a complete picture of the system’s behavior.
In geotechnical engineering, FEA is used to simulate the behavior of soil and rock under various conditions. Engineers can create 3D models of soil and rock structures using specialized software, and then simulate how they will behave under different loads, stresses, and environmental conditions. FEA allows engineers to test the safety and stability of structures before they are built, and to optimize their design for maximum efficiency and effectiveness.
Applications of FEA in Geotechnical Engineering
FEA is used in a wide range of geotechnical engineering applications, from designing foundations and retaining walls to analyzing landslide hazards and modeling the behavior of underground structures. Let’s take a closer look at some of the key applications of FEA in geotechnical engineering:

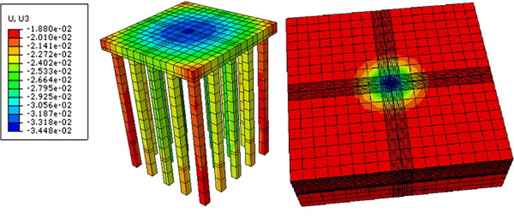

1- Foundation Design
The foundation is the most important part of any structure, as it supports the weight of the building and transfers it to the ground. FEA is often used to design and optimize foundation systems for different types of structures, from skyscrapers to bridges to offshore oil platforms. Engineers can use FEA to simulate how the foundation will behave under different load conditions, and to ensure that it is safe and stable. For example, FEA can be used to design and optimize the foundation for a high-rise building in an earthquake-prone area. Engineers can simulate the behavior of the soil and rock beneath the building, and test different foundation designs to determine which one is most effective at minimizing the building’s response to ground motion. FEA can also be used to design foundations for offshore wind turbines, which must be able to withstand high winds, waves, and currents.

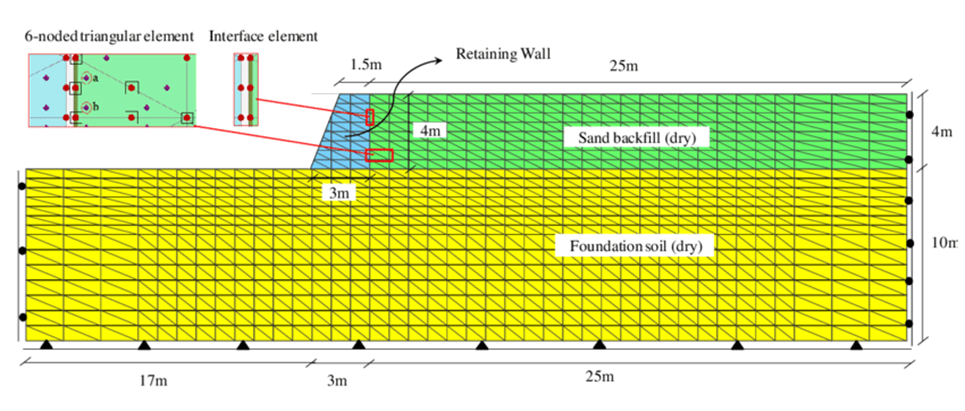

2- Retaining Walls and Slope Stability
Retaining walls are structures that are used to hold back soil or rock in areas where a natural slope would be unstable. FEA can be used to design and optimize retaining walls for different types of soil and rock conditions. Engineers can simulate how the retaining wall will behave under different load conditions, and test different designs to ensure that they are safe and effective. FEA is also used to analyze the stability of slopes and embankments, and to design measures to prevent landslides. Engineers can simulate the behavior of soil and rock under different conditions, such as heavy rainfall or seismic activity, and design slope stabilization measures such as soil nails, anchors, and geotextiles.

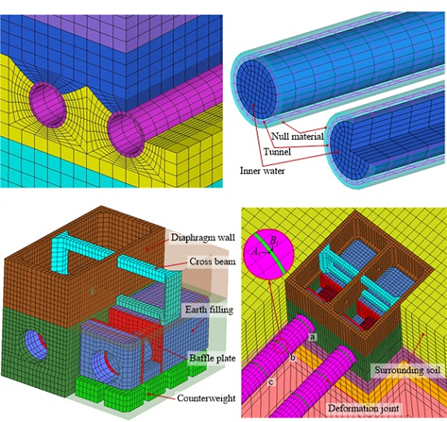

3- Tunneling and Underground Structures
FEA is also used to analyze the behavior of soil and rock around underground structures such as tunnels, shafts, and mines. Engineers can simulate the stresses and strains on the soil and rock, and design support structures such as steel arches, rock bolts, and shotcrete to prevent collapse or deformation. FEA can also be used to simulate the behavior of soil and rock during the construction of underground structures, to ensure that they are safe and stable during excavation.
4- Seismic Analysis
Earthquakes can cause significant damage to structures, particularly in areas with high seismic activity. FEA can be used to simulate the behavior of soil and rock during an earthquake, and to design structures that can withstand seismic forces. Engineers can simulate the behavior of different types of soil and rock, as well as the response of different types of structures such as bridges, dams, and buildings. FEA can also be used to design seismic retrofit measures for existing structures, such as adding steel braces or concrete shear walls to increase their seismic resistance. By using FEA to simulate the behavior of structures during an earthquake, engineers can ensure that they are safe and reliable, and minimize the risk of damage or collapse.

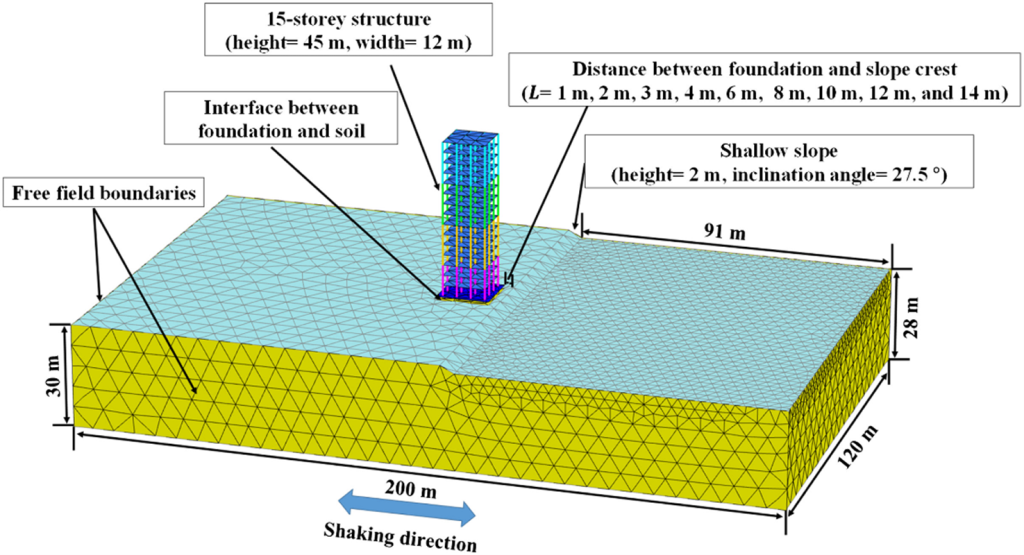

5- Soil-Structure Interaction
In geotechnical engineering, the interaction between the soil or rock and the structure above it is a critical consideration. FEA can be used to simulate the behavior of the soil and rock under the structure, and to analyze the stresses and strains on the structure itself. By understanding how the structure interacts with the soil or rock, engineers can optimize the design of the structure for maximum safety and efficiency. For example, FEA can be used to analyze the behavior of a bridge under different types of soil and rock conditions, and to optimize the design of the bridge’s foundation and supports. FEA can also be used to analyze the behavior of a building during an earthquake, and to design measures to reduce the risk of damage or collapse.
Conclusion
Finite element analysis is a powerful tool for geotechnical engineers, allowing them to simulate the behavior of soil and rock under a wide range of conditions. By using FEA to design and optimize structures such as foundations, retaining walls, and underground structures, engineers can ensure that they are safe and reliable. FEA can also be used to analyze the behavior of structures during an earthquake, and to design seismic retrofit measures for existing structures. By understanding the interaction between the soil or rock and the structure above it, engineers can optimize the design of structures for maximum safety and efficiency. In conclusion, geotechnical engineering applications of finite element analysis have revolutionized the way in which structures are designed and built. With the help of FEA, geotechnical engineers can design structures that are safer, more reliable, and more efficient. As technology continues to advance, we can expect FEA to play an even larger role in the future of geotechnical engineering.
