1. Introduction:
Structural health monitoring (SHM) is essential for ensuring the safety and longevity of civil and mechanical infrastructure. The consequences of structural failure can be catastrophic, leading to injuries, loss of life, and significant economic costs. One of the key tools used in SHM is finite element analysis (FEA), which allows engineers to create virtual models of structures and simulate their behavior under various conditions. However, traditional FEA methods rely on input from static sensors and may not detect damage in real-time, leaving structures vulnerable to potential failure.
In recent years, significant advancements have been made in sensor technology, data analysis methods, and finite element modeling techniques that are improving the accuracy and effectiveness of SHM using FEA. However, these advancements also bring new challenges, such as data management and processing, model validation and verification, and the integration of different types of sensors and data analysis methods. In this article, we will explore some of these advancements and challenges and discuss their implications for the field of structural health monitoring using FEA.
2. Advancements in Sensor Technology:

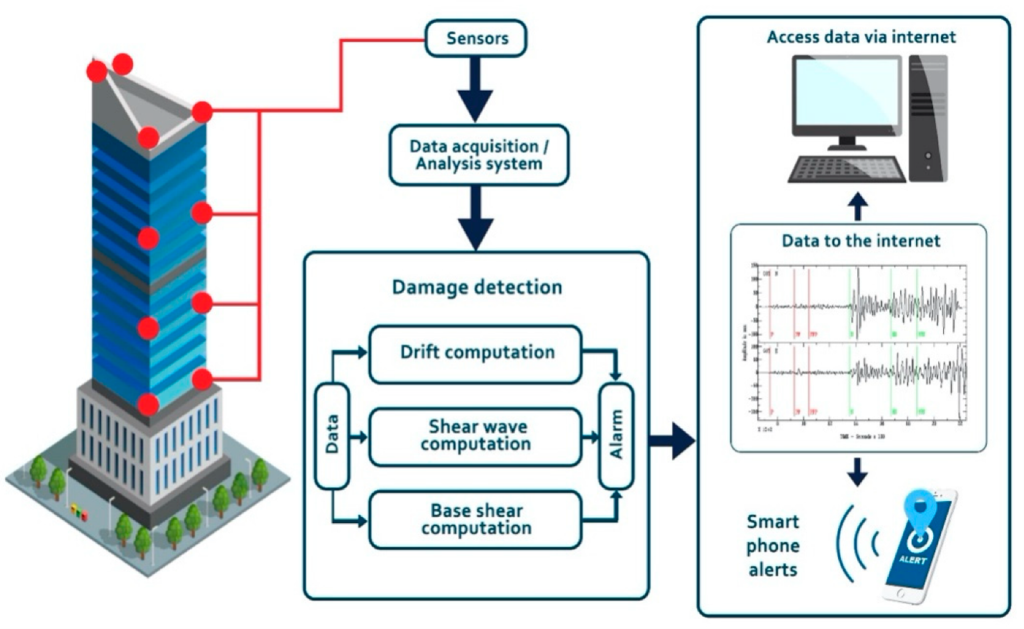

Advancements in sensor technology are revolutionizing the field of structural health monitoring (SHM). Traditional SHM methods have relied on static sensors to collect data on the behavior of structures over time. However, these methods have limitations, as they may not capture changes in the structural behavior in real-time. In recent years, there have been significant advancements in sensor technology that are making it possible to monitor the health of structures in real-time.
Accelerometers, strain gauges, and temperature sensors are some of the most commonly used sensors in SHM. Accelerometers measure the acceleration of a structure under load, while strain gauges measure changes in the strain of a structure due to applied loads. Temperature sensors monitor changes in the temperature of a structure, which can be an indicator of changes in structural behavior. These sensors are essential for understanding how a structure behaves under different conditions and for detecting changes in behavior that may indicate damage.
Fiber-optic sensors are an example of a new technology that is being used in the context of SHM. These sensors use light to measure changes in strain or temperature along a fiber-optic cable. The sensors can be embedded in structures and provide high-resolution data in real-time. Fiber-optic sensors are being used to monitor the health of bridges, tunnels, and other structures, and have shown promise in detecting damage that may not be visible to the naked eye.
Overall, advancements in sensor technology are improving the accuracy and effectiveness of SHM by providing real-time data on the behavior of structures. The use of new sensor technologies, such as fiber-optic sensors, is expanding the range of applications for SHM and improving our ability to detect and respond to potential structural damage.
3. Data Analysis Methods:
In addition to advancements in sensor technology, there have been significant developments in data analysis methods that are improving the accuracy and effectiveness of structural health monitoring (SHM) using finite element analysis (FEA). Traditionally, FEA has been used to create virtual models of structures and simulate their behavior under various conditions. However, FEA alone may not be sufficient for detecting damage in real-time. By analyzing data from sensors, FEA can be used to monitor the health of structures in real-time and detect changes in behavior that may indicate damage.
Signal processing is one data analysis method that is being used in conjunction with FEA to monitor the health of structures. Signal processing techniques, such as Fourier analysis and wavelet analysis, are used to extract meaningful information from data collected by sensors. These techniques can be used to identify patterns and changes in data that may indicate damage to a structure.
Machine learning is another data analysis method that is being used in SHM. Machine learning algorithms can be trained on data collected from sensors to identify patterns and changes in behavior that may indicate damage. These algorithms can then be used to predict future behavior and detect changes in real-time. Machine learning has shown promise in detecting damage that may not be visible to the naked eye and improving the accuracy of SHM using FEA.
Pattern recognition is a data analysis method that involves identifying patterns in data that may indicate damage. This method can be used to analyze data from sensors to detect changes in behavior that may indicate damage. For example, pattern recognition techniques can be used to detect changes in the frequency or amplitude of vibrations in a structure, which may be indicative of damage.
Real-world applications of these data analysis methods in SHM include the monitoring of bridges, buildings, and other civil infrastructure. For example, signal processing techniques have been used to detect damage in a suspension bridge by analyzing data from sensors installed on the bridge. Machine learning algorithms have been used to monitor the structural health of wind turbines and detect changes in behavior that may indicate damage. Pattern recognition techniques have been used to detect changes in the behavior of buildings due to environmental factors such as wind and temperature.
Overall, advancements in data analysis methods are improving the accuracy and effectiveness of SHM using FEA by providing real-time analysis of data collected from sensors. Signal processing, machine learning, and pattern recognition are just a few examples of the techniques being used to analyze data and detect changes in behavior that may indicate damage. By combining these methods with FEA, engineers can improve their ability to monitor the health of structures and respond to potential damage before it becomes catastrophic.
4. Finite Element Modeling Techniques:
Model updating is one technique that is being used to improve the accuracy of FEA models. Model updating involves using data collected from sensors to modify and refine an existing FEA model. This technique can be used to correct errors in the model, such as boundary conditions or material properties, that may be contributing to inaccuracies in the model predictions. Model updating has been shown to improve the accuracy of FEA models in various applications, including the monitoring of bridges and wind turbines.
Damage detection is another finite element modeling technique that is being used in SHM. Damage detection techniques involve using FEA models to identify changes in the behavior of a structure that may indicate damage. These techniques can be used to detect damage that may not be visible to the naked eye, such as cracks or material degradation. Damage detection techniques have been used to monitor the health of bridges, buildings, and other structures.
Uncertainty quantification is a technique that involves accounting for uncertainties in the input data and assumptions made during model development. By quantifying and incorporating uncertainties into FEA models, engineers can improve the accuracy of model predictions and make more informed decisions about the health of a structure. Uncertainty quantification techniques have been used in various SHM applications, including the monitoring of nuclear power plants and aircraft structures.
Real-world applications of these finite element modeling techniques in SHM include the monitoring of bridges, buildings, and other civil infrastructure. For example, model updating has been used to improve the accuracy of FEA models of bridges by correcting errors in the model predictions. Damage detection techniques have been used to detect damage in wind turbines and other structures. Uncertainty quantification techniques have been used to improve the reliability of FEA predictions in various applications.
Overall, advancements in finite element modeling techniques are improving the accuracy and effectiveness of SHM by providing methods for updating and refining FEA models based on data collected from sensors. Model updating, damage detection, and uncertainty quantification are just a few examples of the techniques being used to improve the accuracy of FEA models and make more informed decisions about the health of structures. By combining these techniques with advancements in sensor technology and data analysis methods, engineers can improve their ability to monitor the health of structures and respond to potential damage before it becomes catastrophic.
5. Case Study:
To illustrate the application of finite element analysis in structural health monitoring, we provide the following case study for you in title of Structural Health Monitoring of a Suspension Bridge;

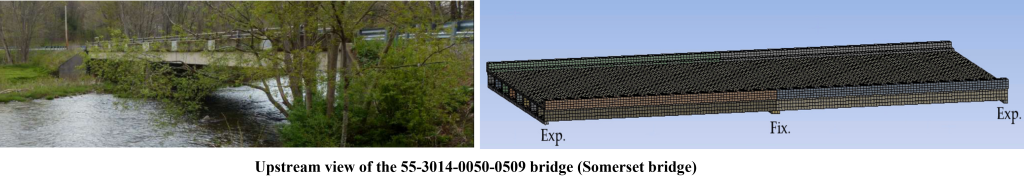

The suspension bridge is a vital transportation link that spans a large river. The bridge has been in operation for over 64 years, and it is critical to ensure that it remains structurally sound. To monitor the health of the bridge, finite element analysis was employed, along with various sensors that were installed at key locations on the bridge.

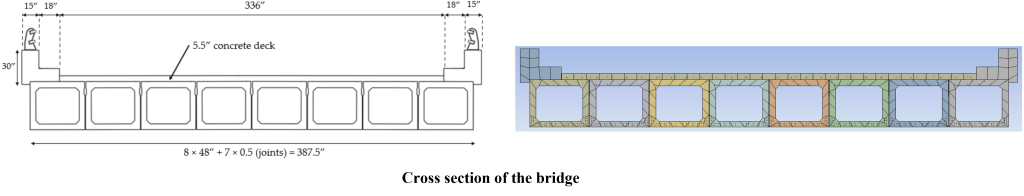

The finite element model was used to predict the behavior of the bridge under different loading conditions, and to detect any changes in the structure that could indicate damage or deterioration. The sensors, which included accelerometers and strain gauges, were used to collect data on the bridge’s response to various loads and environmental conditions.

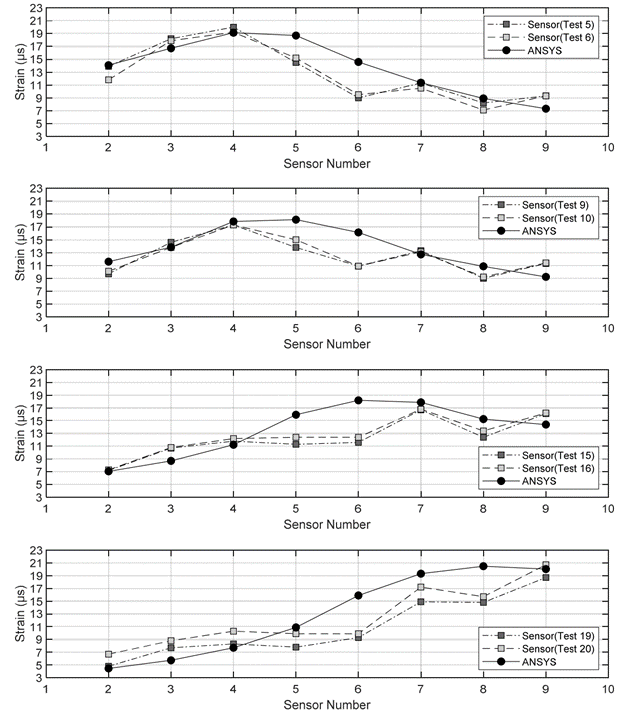

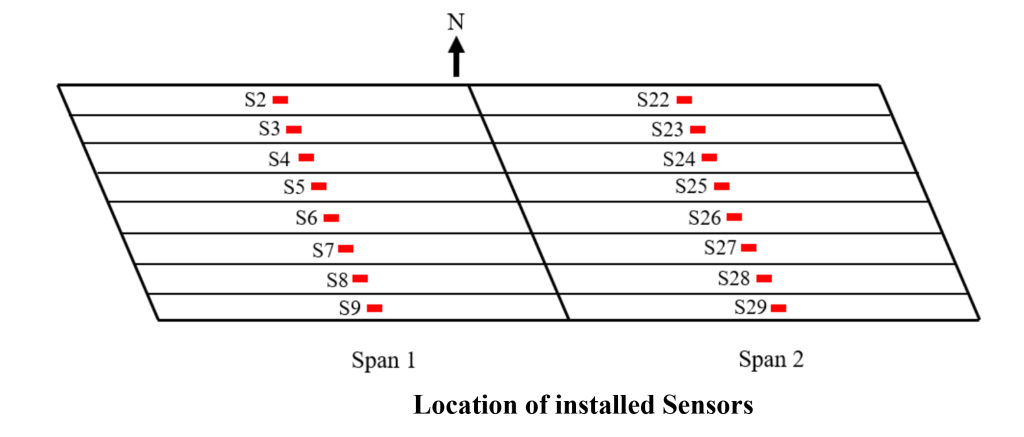

The data from the sensors was analyzed using various techniques, including signal processing and machine learning. The results of the analysis were used to update the finite element model, which was then used to predict the future behavior of the bridge. Figure below is showing the predicted strain at S02 through S09 Sensors along with the empirical measurements reported independently by the third party. Owing to the field test protocol, it is noteworthy that such maximum strain may not have occurred exactly when the truck was at the location assumed in the model. Nonetheless, the numerical and the experimental values were quite consistent except for gauges 5 and 6. The fact that the readings from some gauges mismatch the numerical estimation may be attributed to a combination of the following factors: gauge responsiveness, material properties, and local effects. More detailed studies should be done in this direction, but finite element analysis is consistent with the readings of most gauges.
The full text of this valuable research is available in the link and you can refer to it for further study. The structural health monitoring program has allowed engineers to detect small changes in the bridge’s behavior before they become significant, and to plan maintenance activities to ensure the long-term safety and reliability of the bridge.
6. Conclusion:
In conclusion, the advancements in finite element analysis have revolutionized the field of structural health monitoring. By combining advanced sensor technology with sophisticated data analysis and finite element modeling techniques, it is now possible to monitor the health of structures in real-time, detect damage, predict failure, and optimize maintenance schedules. We have explored the recent advancements in sensor technology and their application in structural health monitoring.
We have also discussed various data analysis methods and finite element modeling techniques, highlighting how they are being used to improve the accuracy of finite element models. Finally, the case study of the suspension bridge has demonstrated how finite element analysis can be used to detect damage and predict the behavior of the structure under various loading conditions. It has also emphasized the importance of accurate finite element modeling and data analysis techniques in ensuring the safety and longevity of critical infrastructure. Looking forward, further research and development are needed to improve the accuracy and reliability of structural health monitoring systems. In particular, there is a need to explore new sensor technologies, data analysis methods, and finite element modeling techniques that can provide more accurate and timely information on the health of structures. By continuing to push the boundaries of technology, we can ensure the safety and longevity of our critical infrastructure for generations to come.
