Direct Pullout Test of Steel Rebar using Cohesive Contact Behavior

$15.00

This numerical sample is not based on a laboratory sample. If you are interested in concrete structures, it can be a suitable and affordable model for your studies. CAE + JNL files are provided to you by purchasing the product. You can edit and run Model using Abaqus 6.14.1 or later versions. for more detail please read the below description.

Description

Direct Pullout Test of Steel Rebar using ABAQUS

The “Structural Numerical Research Center” provides numerous numerical models to assist scientists and researchers all over the world. For last 13 years, we have always aimed to improve engineering knowledge and develop the findings. Modeling the behavior of concrete structures has always had certain complexities. Modeling technique for beams, columns and in general every reinforced concrete member has the same generalities and completely different details. Therefore, concrete members require accurate definition of material behavior, loading condition and mesh technique, etc.

This Product:

This product (Direct Pullout Test of Steel Rebar) is not based on a laboratory sample and it does not have tutorial video. Model evaluation shows that, the method which many researchers use to simulate the behavior of such members using cohesive contact behavior. As you know, the Abaqus material library provided three methods to simulate concrete behavior;

1- Concrete smeared cracking.

2- Cracking model for concrete.

3- Concrete damaged plasticity.

All three methods have unique features which should choose by the user based on the problem conditions. In this model, we considered “Concrete damaged plasticity method” to simulate the behavior of concrete beam. So that, mechanical behavior of concrete material is a continuum, plasticity-based and damage model.

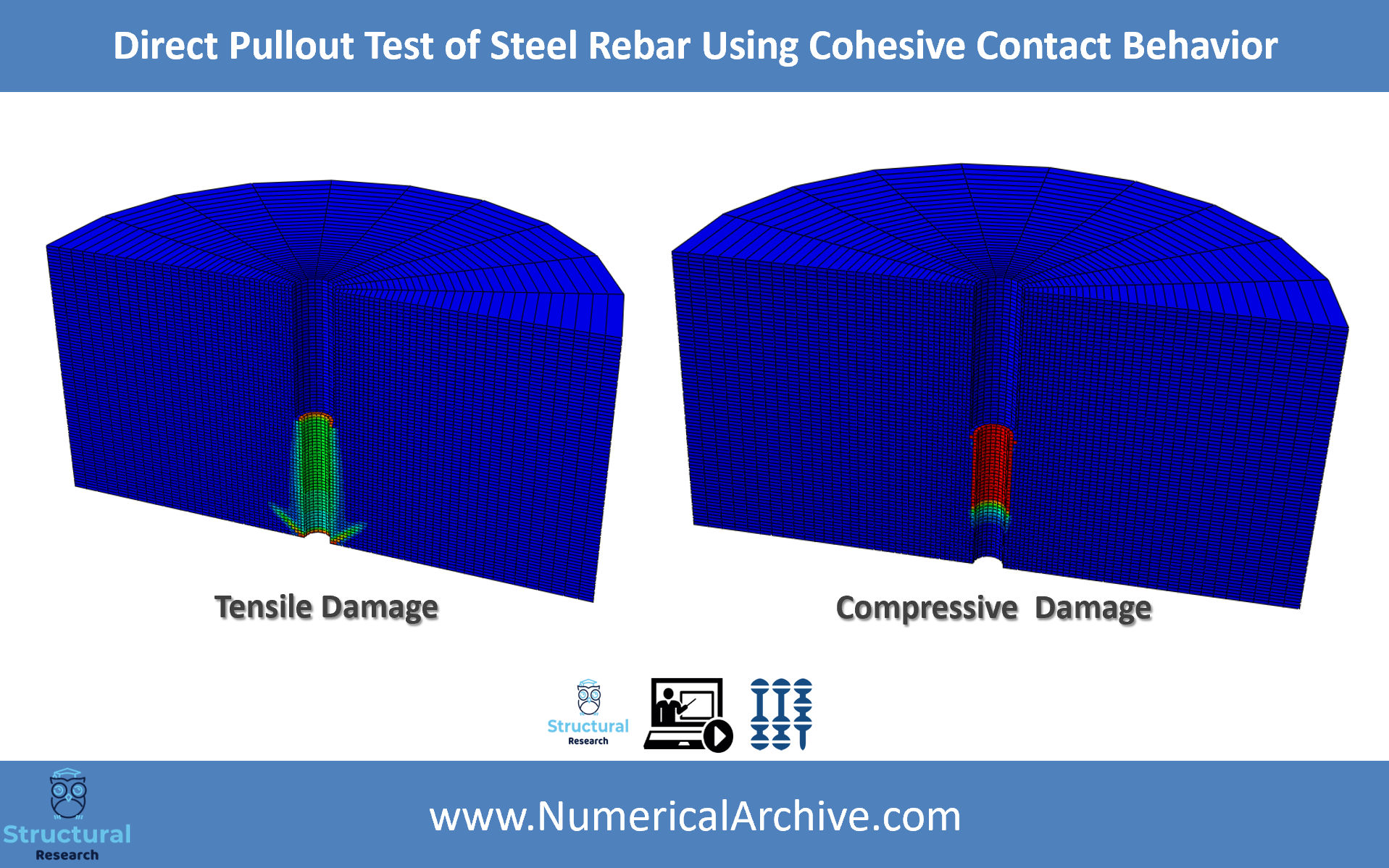

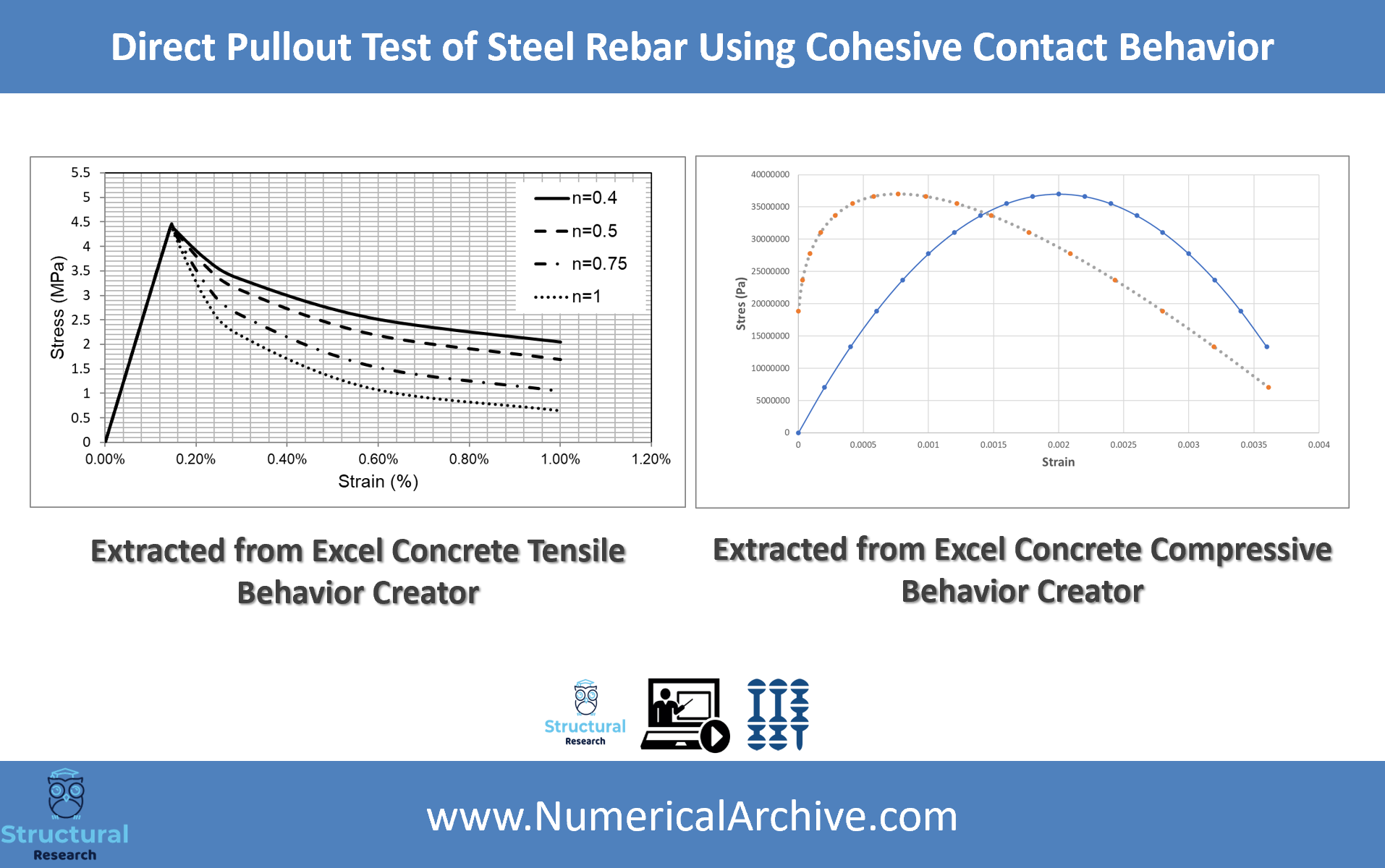

The main two failure mechanisms are assumed for tensile cracking and compressive crushing of concrete material and has been carefully applied through modeling prosses. Tension and pressure relationships will be presented to you in the form of an Excel file according to the attached images. After evaluating this Abaqus model (Direct Pullout Test of Steel Rebar), you will be able to simulate any type of such problems and extract the contour of stresses, strains, forces and cracks. You can watch summary of other Abaqus tutorial videos in our YouTube channel. Thank you in advance for subscribing us. You can also find more products about concrete structures at the link. Keep in mind that to increase your modeling knowledge in Abaqus software, the best reference is the software help, along with the tutorials on our website. Please note that it is important to read the terms and conditions section before making a payment.



Direct Pullout Test of Steel Rebar using Cohesive Contact Behavior
Direct Pullout Test of Steel Rebar using Cohesive Contact Behavior
Direct Pullout Test of Steel Rebar using Cohesive Contact Behavior
Direct Pullout Test of Steel Rebar using Cohesive Contact Behavior
