Video Tutorial; Masonry infilled Wall of RC Frame Using ABAQUS

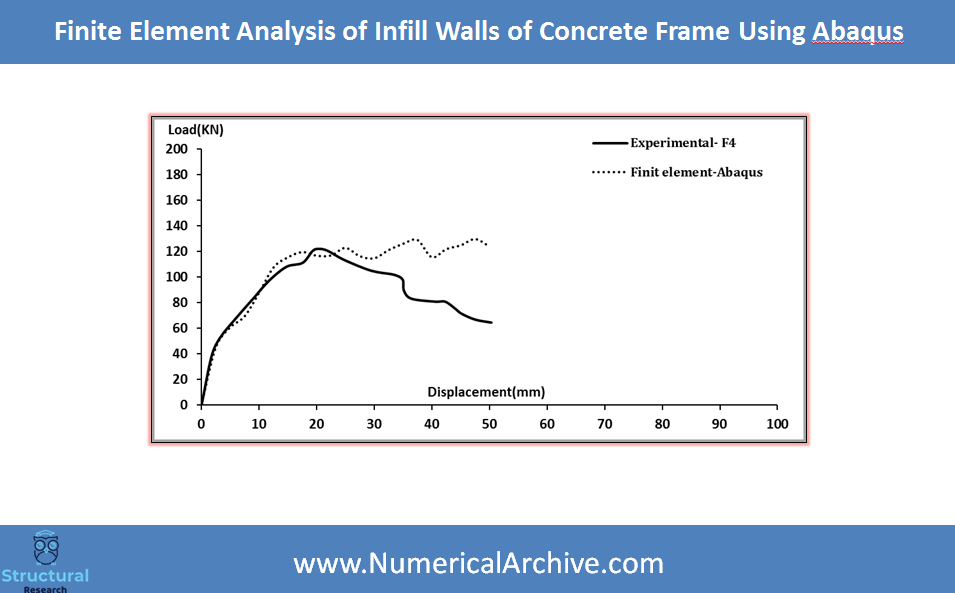

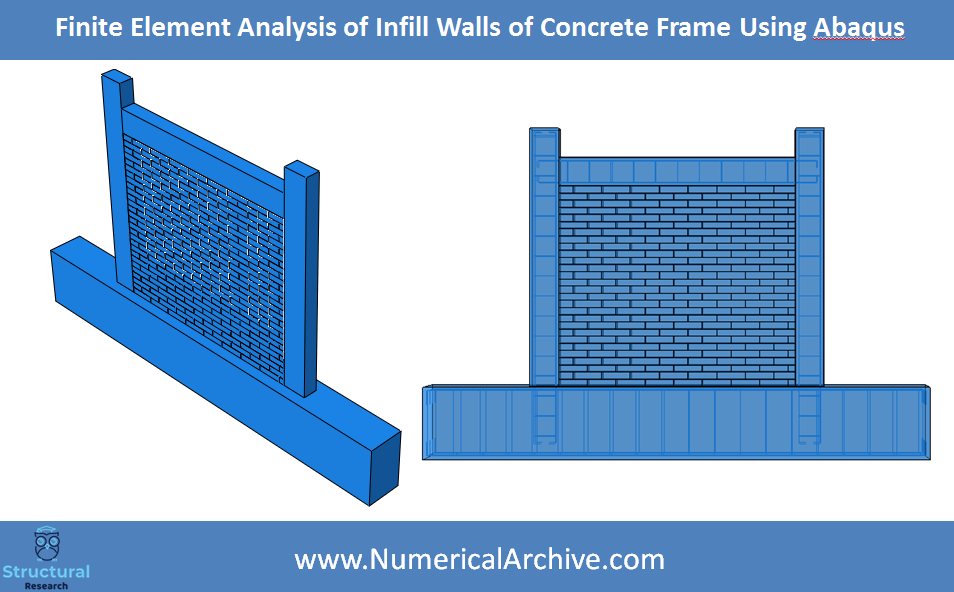

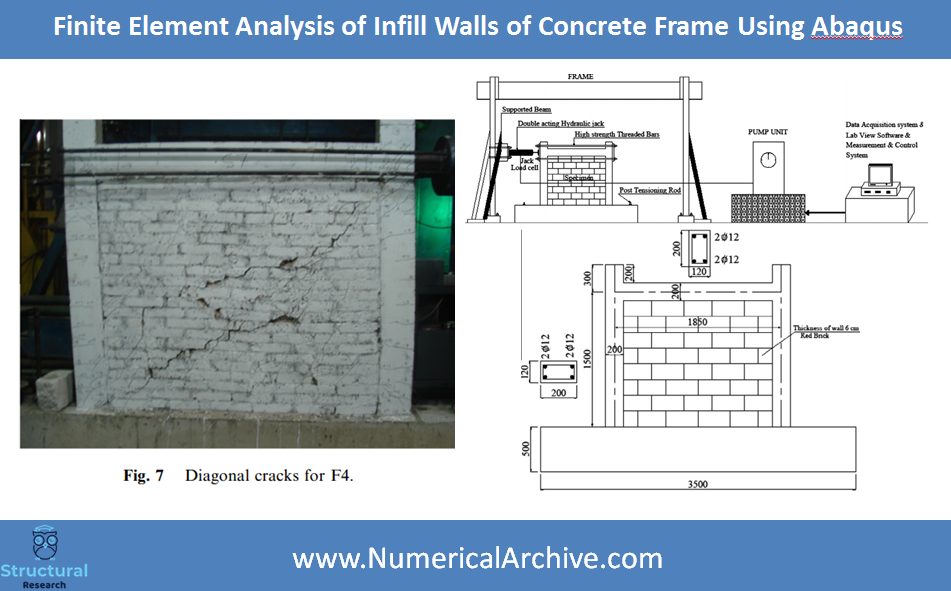

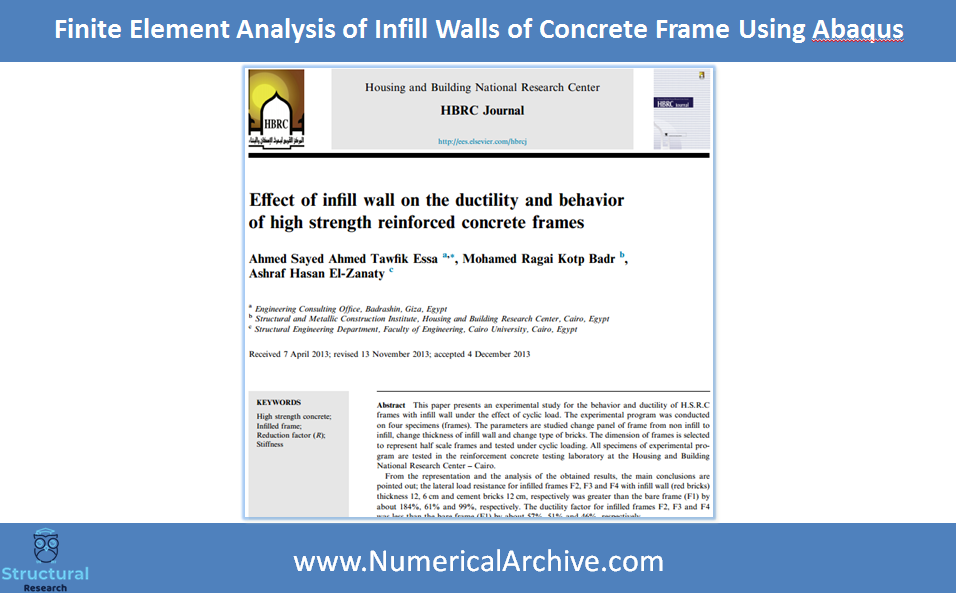

This Video Tutorial is produced and validated based on a laboratory sample. The results of the comparison of two samples indicate that numerical assumptions and simulation have led to acceptable results. Using this educational product, you can see the contour of the cracks and stresses caused by Lateral load. CAE and JNL, Result  and CDP Excel files, Journal Paper and Video file are provided to you by purchasing the product. You can edit and run Model using Abaqus 6.14.1 or higher versions.


Video Size: 460 MB

Video Length: 02:04:46

Video Quality: HD 1080


Analyzing the behavior of reinforced concrete (RC) frames with infilled masonry walls is important for a number of reasons. Infilled masonry walls can greatly affect the overall behavior and response of RC frames under various loading conditions such as earthquakes or wind loads. Therefore, understanding the interaction between the RC frame and its infilled masonry materials is critical for the safe design and construction of buildings and structures.

Our institution, the Structural Numerical Research Center, recognizes the importance of this topic and is proud to present an educational video tutorial on the subject. The tutorial is based on a laboratory sample and uses the Concrete CDP Criterion model to simulate the behavior of concrete and masonry structures. By following the step-by-step training provided in the video, researchers and students will be able to simulate any type of such frames using this method and extract the contour of stresses, strains, and concrete cracks.

Please note that visitors should read the terms and conditions section before making a purchase. We hope that this educational video tutorial will be a valuable resource for anyone interested in the behavior of RC frames with infilled masonry walls, and we encourage you to subscribe to our YouTube channel for more informative content.
