Seismic Behavior of Concrete Shear Wall

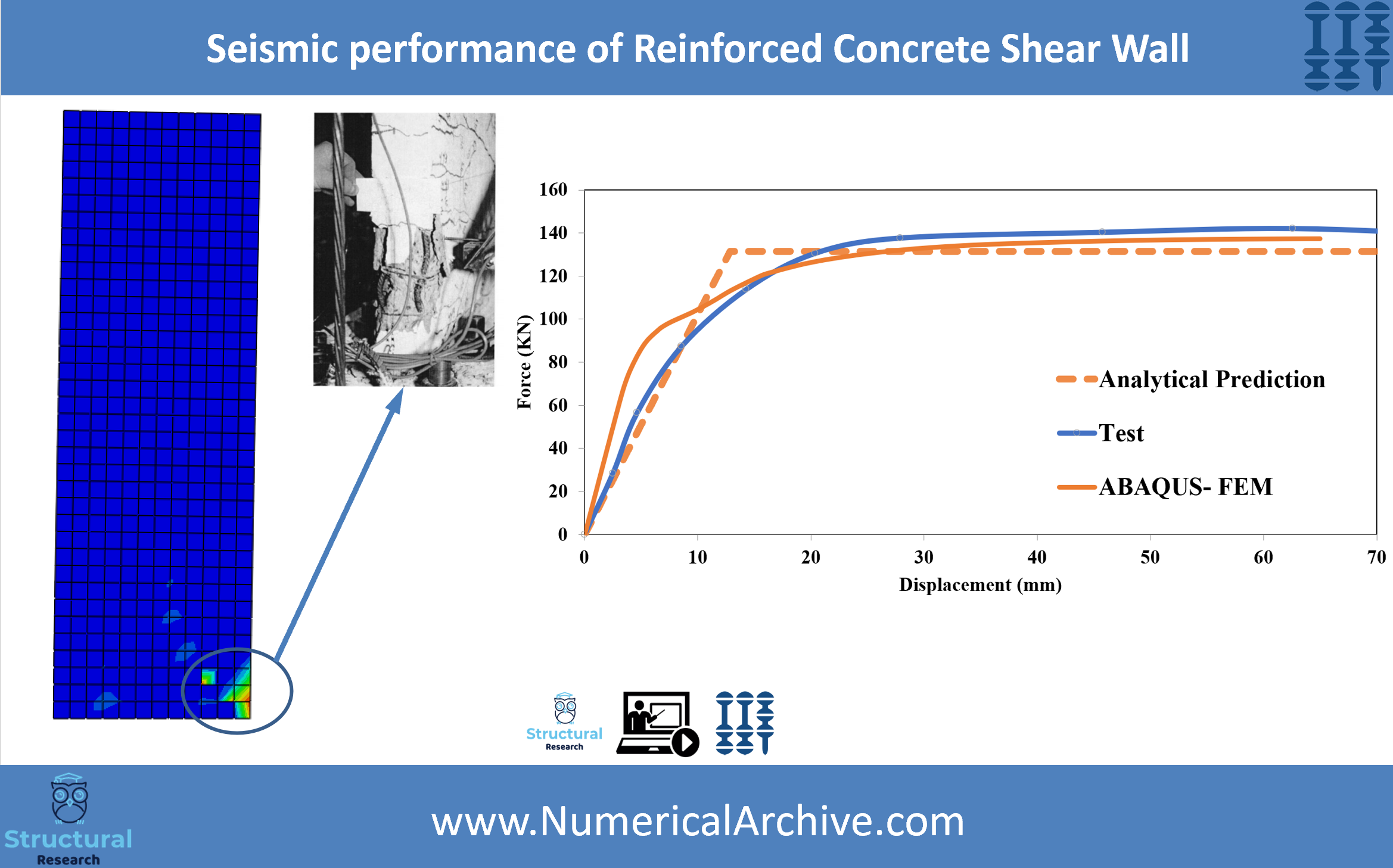

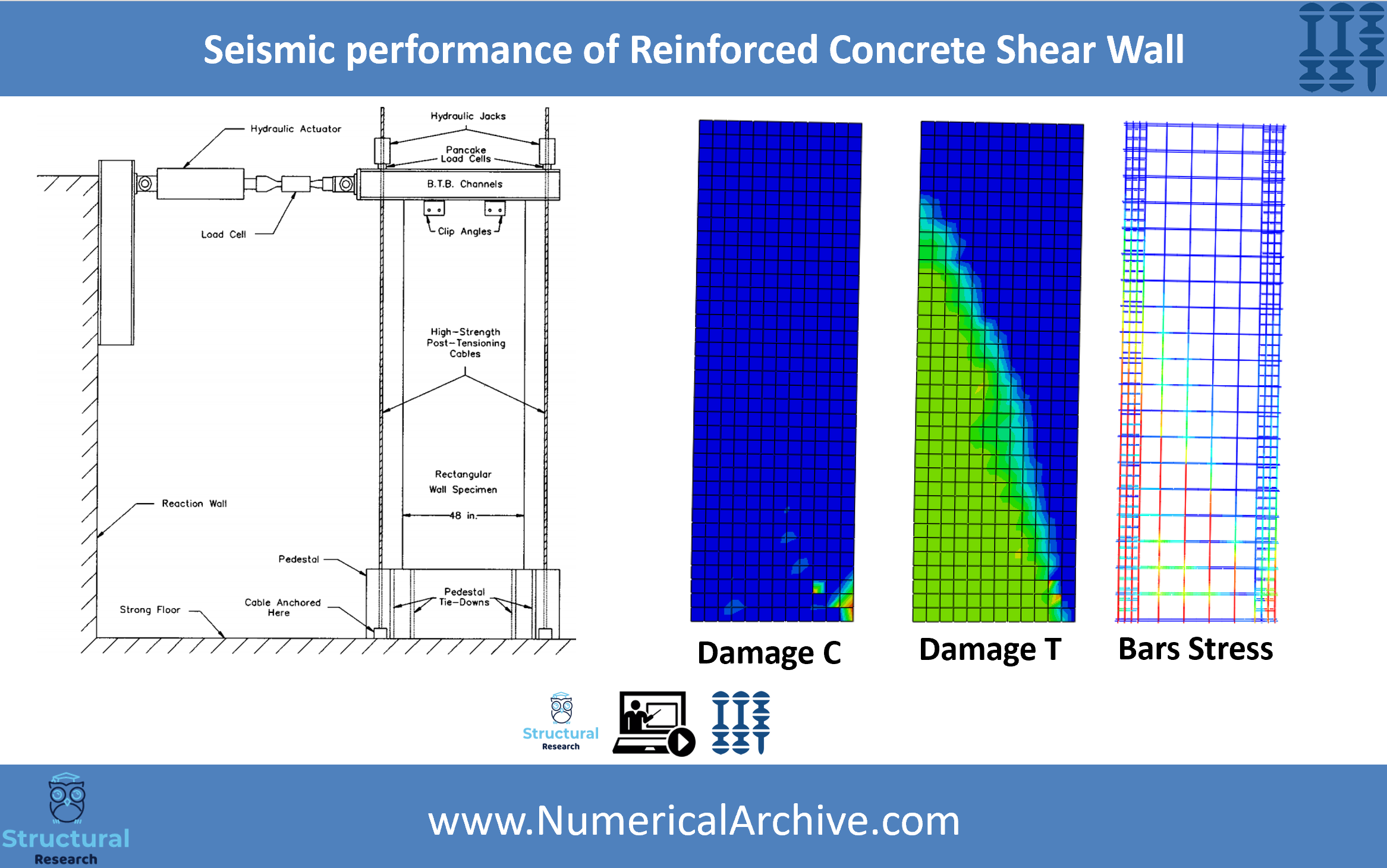

This numerical sample is based on a laboratory sample. The results of the comparison of two samples indicate that numerical assumptions and simulation have led to acceptable results. Using this educational product, you can get the contour of stresses, force and displacement caused by push load. Technical paper, getting result movie, CAE and JNL Abaqus file and Material & Result Excel files are provided to you by purchasing the product. You can edit and run Model using Abaqus 6.14.1 or later versions. for more detail please read the below description.




Reinforced Concrete Shear Walls using ABAQUS

The “Structural Numerical Research Center” provides numerous numerical models to assist scientists and researchers all over the world. For last 13 years, we have always aimed to improve engineering knowledge and develop the findings. Modeling the behavior of concrete structures has always had certain complexities. The modeling technique for beams, columns, shear walls and in general every reinforced concrete member has the same generalities and completely different details. Therefore, concrete frames in Abaqus also require accurate definition of material behavior, loading, mesh technique, etc.

This Product:

This product (Reinforced Concrete Shear Walls using ABAQUS) is based on a laboratory sample. The modeling technique used is quite similar to the technique that many researchers use today in finite element analysis of shear walls. As you know, the Abaqus material library provided three methods to simulate concrete behavior;

1- Concrete smeared cracking,

2- Cracking model for concrete.

3- Concrete damaged plasticity.

All three methods have unique features which should choose by the user based on the problem conditions. In this product, you’ll find “Concrete damaged plasticity method” to simulate the lateral behavior of concrete frames. So that, in this tutorial, mechanical behavior of concrete material is a continuum, plasticity-based and damage model.

The main two failure mechanisms are assumed for tensile cracking and compressive crushing of concrete material and has been carefully applied through modeling prosses. After evaluating this product (Reinforced Concrete Shear Walls using ABAQUS), you will be able to simulate any type of such structures and extract the contour of stresses, strains, forces and displacements. You can watch result video below. Please note that visitors should read the terms and conditions section before making a purchase. We hope that this educational product will be a valuable resource for anyone interested in concrete structures, and thank you in advance for subscribing to our YouTube channel. You can also find more products about concrete structures at the link. Keep in mind that to increase your modeling knowledge in Abaqus software, the best reference is the software help, along with the tutorials on our website.
